ASME-BPE Clamp fittings

ASME-BPE (American Society of Mechanical Engineers - BioProcessing Equipment) is an international standard for the biotechnology, pharmaceutical and cosmetic industries.

ASME BPE fittings standard is derived from the Imperial OD (Outside Diameter) standard, in reference to the British Empire fittings used until the end of the 19th century. The diameter dimension is therefore expressed in inches, from 1" to 4".

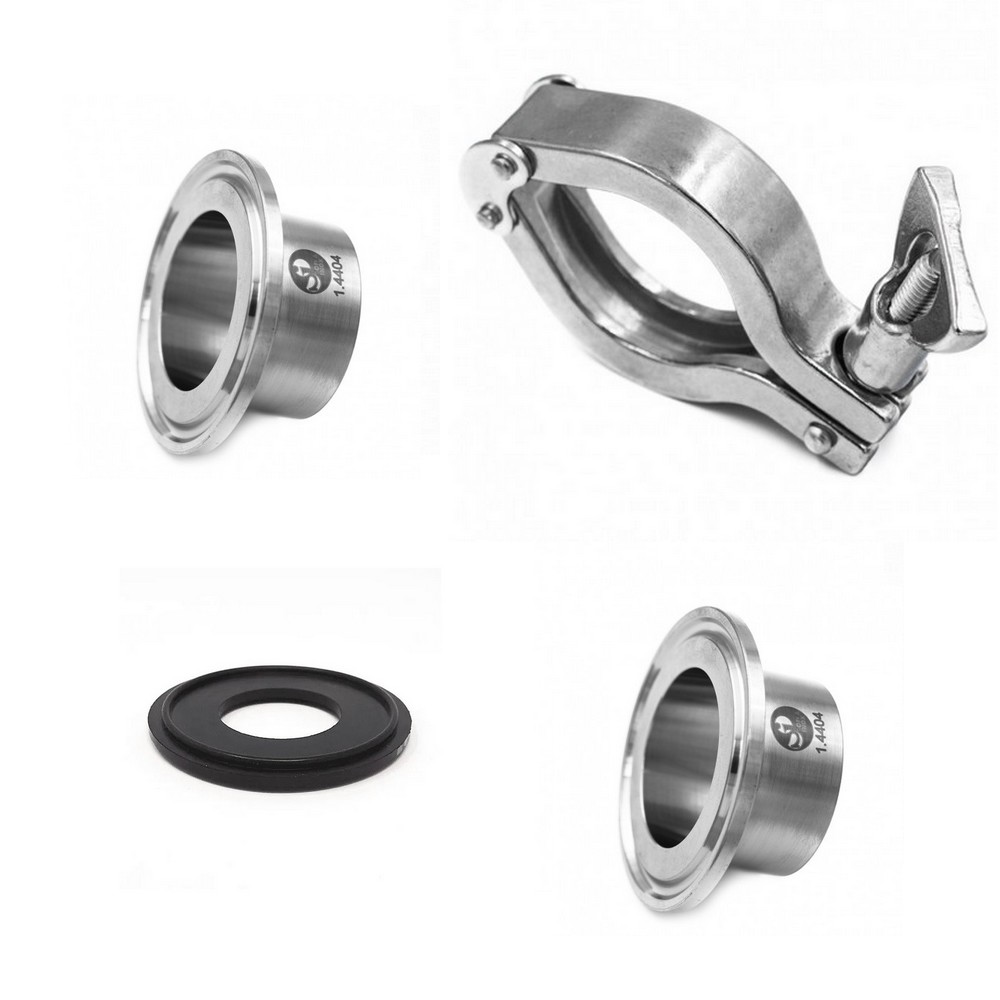

ASME-BPE Clamp connection consist of 2 ferrules, a Clamp collar and a gasket in EPDM, Teflon, silicone or VITON®. They are particularly suitable for sterilisation and cleaning requirements.

raccord Clamp
pièces de raccord clamp ASME BPE

For more information, see our guide to ASME-BPE fittings.

Our range of ASME-BPE ferrules and plugs are manufactured from 316L stainless steel, with a controlled sulphur content of between 0.005% and 0.017%, for optimum weld quality. The surfaces of the parts are mechanically polished or electropolished, which eliminates crevices and facilitates cleaning. All our ASME BPE parts have a surface finish of Ra < 0.8 µ (SF3).

See also : Clamp SMS fittings | Clamp ISO fittings | Clamp DIN 32676 fittings

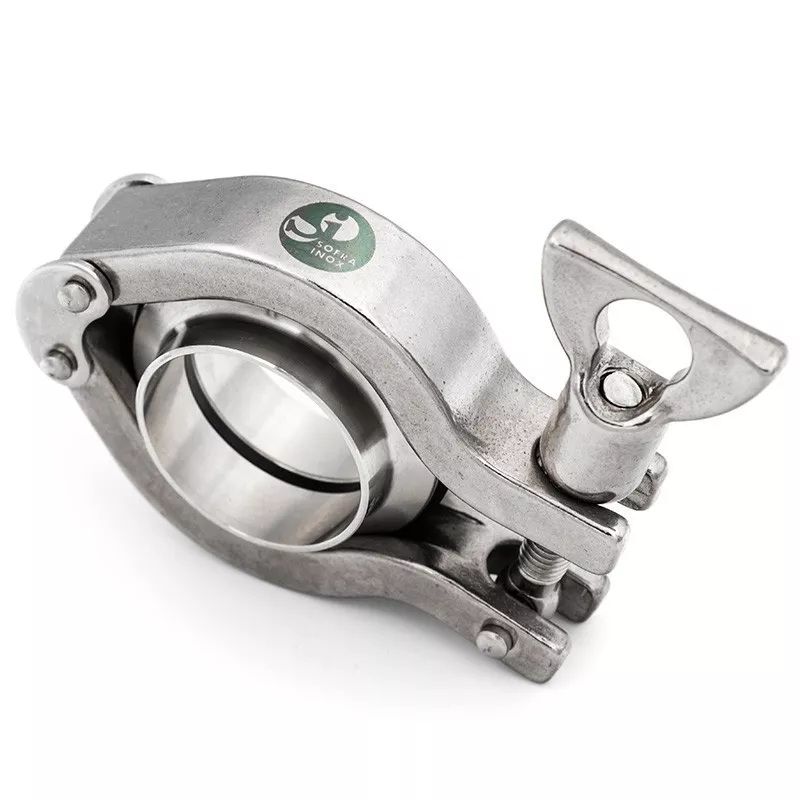

ASME BPE Clamp complete fitting 12.7mm 316L

AISI 316L - EU 1.4404  (EN 10272 standard)

ASME BPE Clamp complete fitting 28.6mm 316L

AISI 316L - EU 1.4404  (EN 10272 standard)

ASME BPE Clamp short ferrule 12.7mm - Ra 0.6 - 316L

AISI 316L - EU 1.4404 (EN 10272 standard)

ASME BPE Clamp ferrule 28.6mm - Ra 0.6 - 316L

AISI 316L - EU 1.4404 (EN 10272 Standard)

ASME BPE Clamp long ferrule 50.8mm - Ra 0.6 - 316L

AISI 316L - EU 1.4404 (EN 10272 standard)

ASME BPE Clamp cap - RA 0,6 - 316L

AISI 316L - EU 1.4404 (EN 10272 Standard)

ASME BPE Clamp gasket EPDM

Black EPDM (-40°C to 130°C)

Clamp adapter ASME-BPE X female NPT 316L

AISI 316L - EU 1.4404 (EN 10272 standard)

Clamp adapter ASME-BPE X male NPT 316L

AISI 316L - EU 1.4404 (EN 10272 Standard)

ASME BPE Clamp gasket PTFE

PTFE (Teflon) (-200 to 260°C)

ASME BPE Clamp gasket Silicone

Translucent silicone  (-80 to 180°C)

ASME BPE Clamp gasket VITON®

VITON®/FKM (-15°C to 250°C)

ASME BPE clamp collar and nut with ceramic coating

AISI 304 - EU 1.4301 (EN 10213 standard) Red,...

ASME BPE Clamp ceramic coated collar with standard nut

AISI 304 - EU 1.4301 (EN 10213 standard) Red,...

ASME BPE Clamp collar with ceramic coated nut

AISI 304 - EU 1.4301 (Standard EN 10213) Nut...

ASME-BPE spring Clamp collar

AISI 304 - EU 1.4301 (EN 102013 standard)

ASME BPE Clamp gasket GYLON®

blue GYLON® (-210°C to +260°C)
