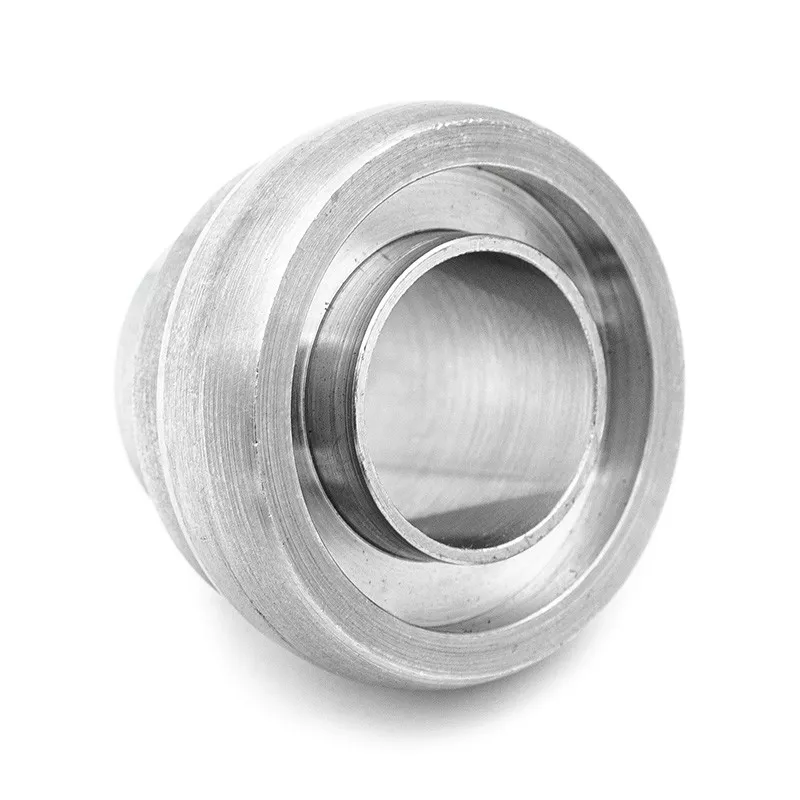

ISO plain part with groove - 316L
AISI 316L - EN 1.4404
ISO standard, plain and grooved part, for 4-piece aseptic fitting, machined in 316L stainless steel. This part accommodates the seal of the Union fitting.
Data sheet
- AISI
- 316L
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 84GI | 8 | 35.9 | 10.3 | 13.5 | 30 | 23 | 32 | 26 | Login | |
| 124GI | 10 | 35.9 | 14 | 17.2 | 30 | 23 | 32 | 26 | Login | Login |
| 154GI | 15 | 35.9 | 18.1 | 21.3 | 30 | 23 | 32 | 26 | Login | |
| 204GI | 20 | 35.9 | 23.7 | 26.9 | 30 | 23 | 32 | 26 | Login | |
| 254GI | 25 | 48 | 30.5 | 33.7 | 42 | 23 | 44 | 34 | Login | |
| 324GI | 32 | 60 | 39.2 | 42.4 | 54 | 23 | 55 | 45 | Login | |
| 404GI | 40 | 66.9 | 45.1 | 48.3 | 61 | 23 | 60 | 50 | Login | |
| 504GI | 50 | 72.5 | 56.3 | 60.3 | 63.5 | 23 | 69 | 61 | Login | |
| 654GI | 65 | 88 | 72.1 | 76.1 | 80 | 23 | 84 | 76 | Login | |
| 804GI | 80 | 105 | 84.9 | 88.9 | 94 | 23 | 98 | 88 | Login |
