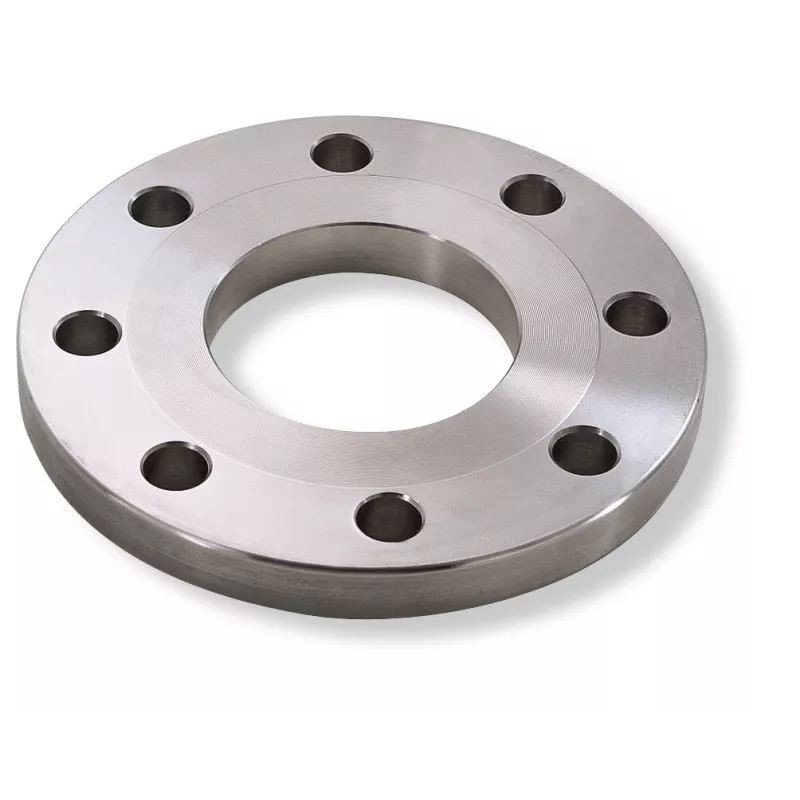

ISO welding flat flange - PN 25/40 - Type 01A - 316L
AISI 316L (1.4404)
ISO standard flat weld flange, Type 01A (flat seal face), pressure rating PN25/40, DN less than 150mm, machined from 316L stainless steel, for the chemical industry.
Data sheet
- AISI
- 316L
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BPS6LPN4015 | 15 | 95 | 16 | 65 | 316L | 4 | 14 | 21.3 | Login | Login |
| BPS6LPN4020 | 20 | 105 | 18 | 75 | 316L | 4 | 14 | 26.9 | Login | Login |
| BPS6LPN4025 | 25 | 115 | 18 | 85 | 316L | 4 | 14 | 33.7 | Login | Login |
| BPS6LPN4032 | 32 | 140 | 18 | 100 | 316L | 4 | 18 | 42.4 | Login | Login |
| BPS6LPN4040 | 40 | 150 | 18 | 110 | 316L | 4 | 18 | 48.3 | Login | Login |
| BPS6LPN4050 | 50 | 165 | 20 | 125 | 316L | 4 | 18 | 60.3 | Login | Login |
| BPS6LPN4065 | 65 | 185 | 22 | 145 | 316L | 8 | 18 | 76.1 | Login | Login |
| BPS6LPN4080 | 80 | 200 | 24 | 160 | 316L | 8 | 18 | 88.9 | Login | Login |
| BPS6LPN40100 | 100 | 235 | 24 | 180 | 316L | 8 | 22 | 114.3 | Login | Login |
