BW Splined Union with gasket - Octogonal nut - JC06 Series
AISI 316L - EU 1.4404
Octogonal nut

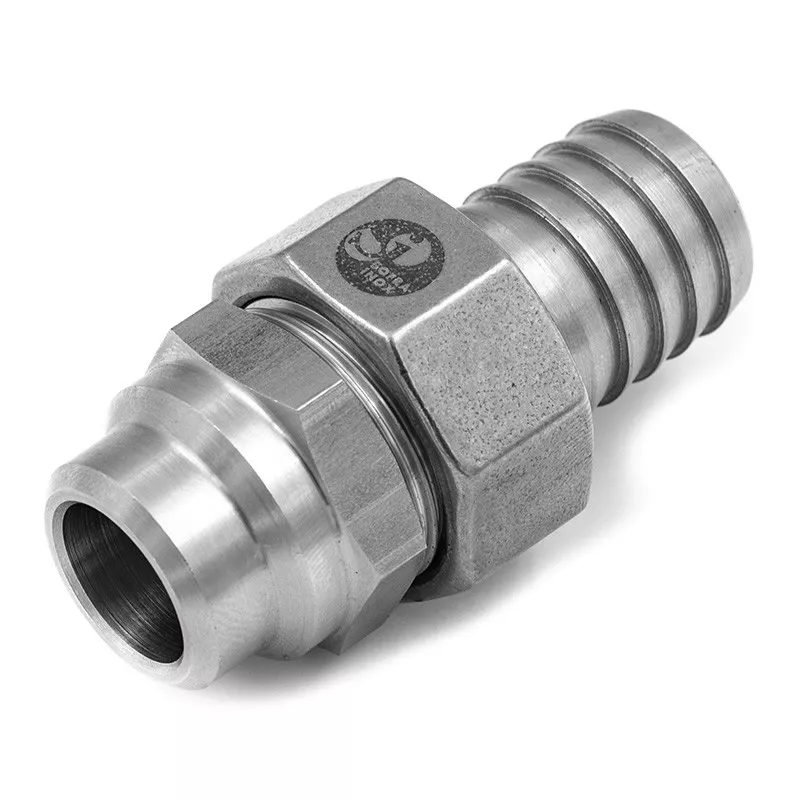

Three-piece union fitting composed of a BW and a Splined part in stainless steel 316L, a moulded octagonal tightening nut in stainless steel 316 and a PTFE (Teflon) seal. This fitting is used in the chemical industry and is available from DN 8 to DN 50.
Data sheet
- AISI
- 316L
- Connection 1
- BW
- Connection 2
- Grooved
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | |||||||
|---|---|---|---|---|---|---|---|
| 408JC06 | 8 | 13.5 | 1/4" | 51 | 21 | 8 | Login |
| 412JC06 | 10 | 17.2 | 3/8" | 55 | 27 | 12 | Login |
| 415JC06 | 15 | 21.3 | 1/2" | 64 | 32 | 15 | Login |
| 420JC06 | 20 | 26.9 | 3/4" | 73 | 38 | 20 | Login |
| 425JC06 | 25 | 33.7 | 1" | 81 | 46 | 25 | Login |
| 432JC06 | 32 | 42.4 | 1 1/4" | 87 | 56 | 33.5 | Login |
| 440JC06 | 40 | 48.3 | 1 1/2" | 87 | 64 | 40.5 | Login |
| 450JC06 | 50 | 60.3 | 2" | 92 | 76 | 50.5 | Login |
