Union Fitting - BW Male - Hexagonal Nut - Gaz thread - AL Series
Gaz thread - AISI 316L - EU 1.4404 - EN 10272

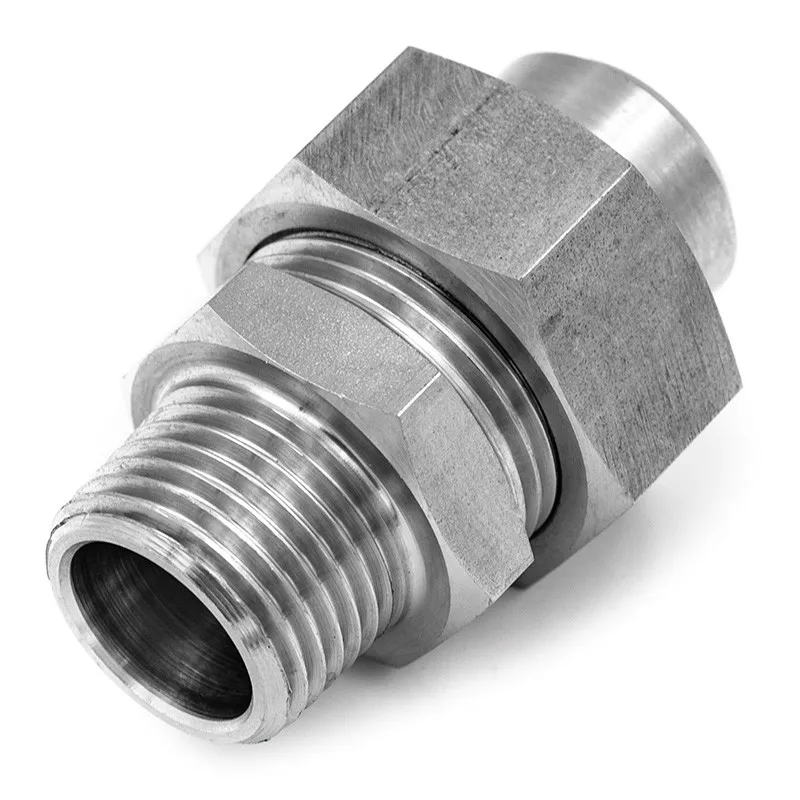

3-piece union with conical junction, 100% made in France by Beal Inox (including the nut), and conforming to the EN 10272 standard, offered from DN 8 to DN 80.
It is composed of a BW part, a male threaded part (with gas thread NF EN 10226-1) and a hexagonal tightening nut in stainless steel 316L (1.4404). The Union fitting does not need a seal due to the conical joint.
Data sheet
- AISI
- 316L
- Thread
- Gas
- Standard
- EN 10272
- Connection 1
- BW
- Connection 2
- Male
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | ||||||||
|---|---|---|---|---|---|---|---|---|
| 308AL | 8 | 13.5 | 1/4" | 41 | 21 | 8 | Login | Login |
| 312AL | 10 | 17.2 | 3/8" | 44 | 27 | 12 | Login | Login |
| 315AL | 15 | 21.3 | 1/2" | 52 | 32 | 15 | Login | Login |
| 320AL | 20 | 26.9 | 3/4" | 58 | 38 | 20 | Login | Login |
| 325AL | 25 | 33.7 | 1" | 63 | 46 | 25 | Login | Login |
| 332AL | 32 | 42.4 | 1 1/4" | 67 | 56 | 33.5 | Login | Login |
| 340AL | 40 | 48.3 | 1 1/2" | 67 | 64 | 40.5 | Login | Login |
| 350AL | 50 | 60.3 | 2" | 73 | 76 | 50.5 | Login | Login |
| 365AL | 65 | 76.1 | 2 1/2" | 92 | 92 | 68.5 | Login | |
| 380AL | 80 | 88.9 | 3" | 103 | 112 | 81 | Login |
