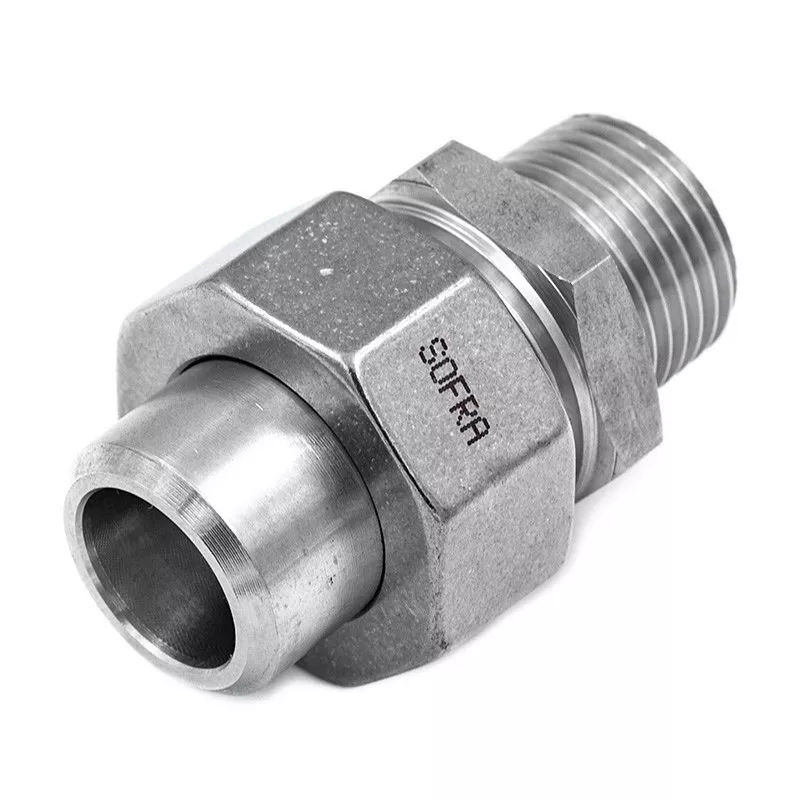

Union Fitting - BW Male - Octogonal Nut - Gaz thread - M6L Series
Gaz Thread
AISI 316L - EU 1.4409
Three-piece union fitting, consisting of a BW part, a male threaded part (NF EN 10226-1) and an octagonal nut in stainless steel 1.4409. This type of fitting does not use a seal.
Working pressure: 80 bars hydraulic test with water at ambient temperature (Tests carried out by CETIM under n° 5/012108/523/4A)
Data sheet
- Thread
- Gas
- Connection 1
- BW
- Connection 2
- Male
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | ||||||||
|---|---|---|---|---|---|---|---|---|
| 305M6L | 5 | 10.2 | 1/8" | 39 | 21 | 5 | Login | Login |
| 308M6L | 8 | 13.5 | 1/4" | 41 | 21 | 8 | Login | Login |
| 312M6L | 10 | 17.2 | 3/8" | 44 | 27 | 12 | Login | Login |
| 315M6L | 15 | 21.3 | 1/2" | 52 | 32 | 15 | Login | Login |
| 320M6L | 20 | 26.9 | 3/4" | 58 | 38 | 20 | Login | Login |
| 325M6L | 25 | 33.7 | 1" | 63 | 46 | 25 | Login | Login |
| 332M6L | 32 | 42.4 | 1 1/4" | 67 | 56 | 33.5 | Login | Login |
| 340M6L | 40 | 48.3 | 1 1/2" | 67 | 64 | 40.5 | Login | Login |
| 350M6L | 50 | 60.3 | 2" | 73 | 76 | 50.5 | Login | Login |
| 365M6L | 65 | 76.1 | 2 1/2" | 92 | 92 | 68.5 | Login | Login |
| 380M6L | 80 | 88.9 | 3" | 103 | 112 | 81 | Login | Login |
